Expertly Crafted Metal Diagrams for Your Project Needs

At Ward Forging Co Inc, we understand the importance of precision in metal fabrication and rolling. Our expertly crafted diagrams serve as the blueprint for your project, ensuring accuracy and efficiency. With over 90 years of unparalleled experience in the industry, we take pride in delivering superior products that endure the test of time.


Ensuring customer satisfaction is our unwavering commitment, reflected in every project we undertake. Additionally, for urgent needs, our same-day turnaround for emergency projects provides reassurance and reliability. Reach out to us today to initiate your project with confidence in our expertise and dedication to excellence.


ANGLES

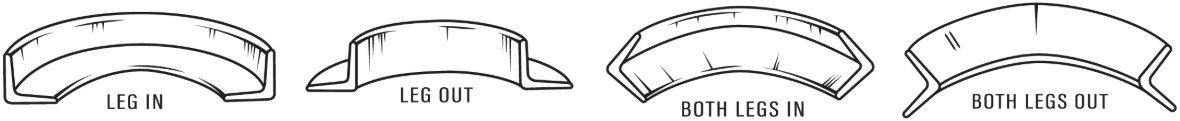

angle leg in
angle leg out
angle both legs in
angle both legs out

BARS

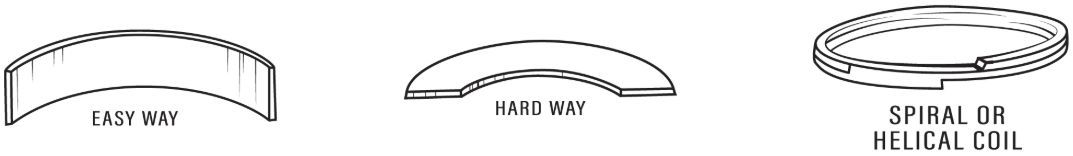

bars easy way
bars hard way
bars spiral or helical coil

BEAMS

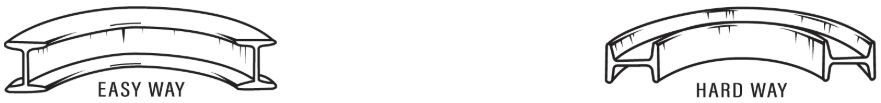

beams easy way
beams hard way

CHANNELS

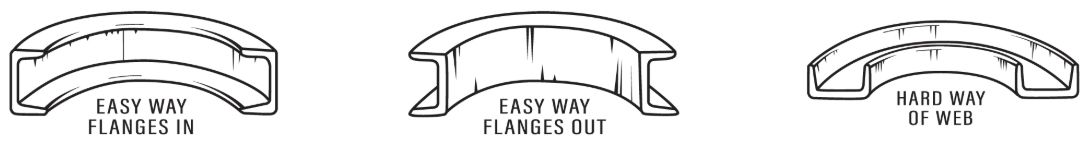

channels easy way flanges in
channels easy way flanges out
channels hard way of web

RAILS

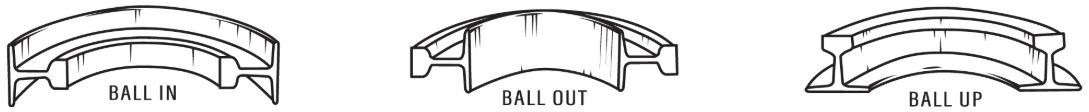

rails ball in
rails ball out
rails ball up

TEES

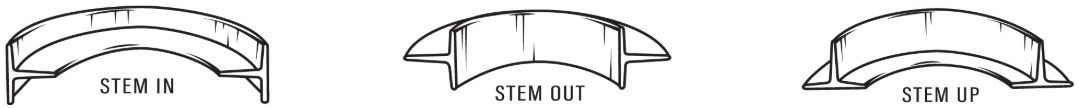

tees stem in
tees stem out
tees stem up

ROLLED PLATE

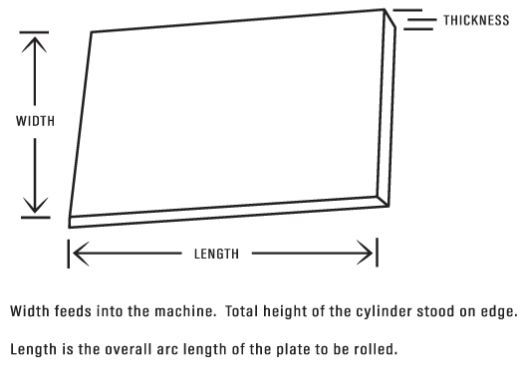

rolled plate
